FOR FABRICATION WORKSHOPS & OEMs
Stop Turning Away Orders.
Start Manufacturing.
Download verified Manufacturing-Ready Blueprints, BOMs, and DXF Files for Pharma & Chemical machinery. Eliminate the need for an expensive in-house design team.
1. Select Machine
Choose from our library of verified industrial equipment designs.
2. Instant Download
Get the PDF Drawings, DXF Cutting Files, and BOM immediately.
3. Manufacture
Give the drawings to your fitter and start production. No guesswork.
Featured Design Packs
Our “Manufacturing License Packs” include everything you need to build the machine from scratch. Validated for structural safety and process efficiency.
Double Ribbon Blender
Complete fabrication details for 500L to 5000L capacity. Pharma-Grade (cGMP) design.
- Fabrication Drawings (PDF)
- Laser Cutting Files (DXF)
- Motor & Gearbox BOM

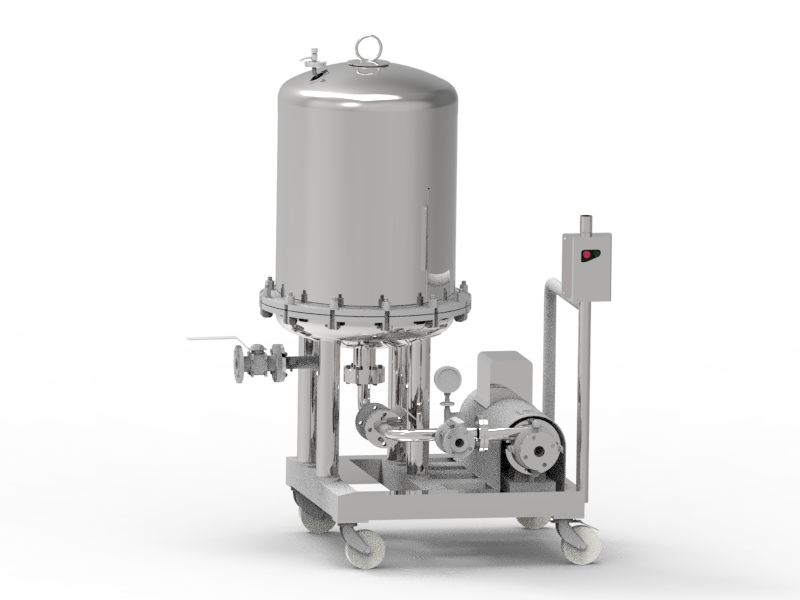

Zero Hold-Up Filter Press
Standard 8″, 14″, 18″, 24″, 33″ Dia x Multiple quantity Plate model. Includes complex interlocking plate geometry.
- Interlocking Plate Details
- Cartridge Assembly DWG
- Pump Selection Guide

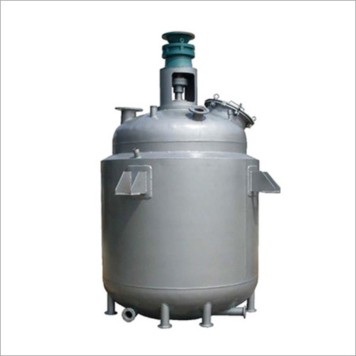

Limpet Coil Reactor
ASME compliant pressure vessel design with Limpet Coil jacket calculations.
- Shell Thickness Report
- Dish End Geometry
- Safety Validation (FEA)
More Than Just A PDF. A Complete Production Kit.
When you download a Destomy Design Pack, you aren’t just getting lines on paper. You get the engineering intelligence of 50 years condensed into a zip file.
GA & Fabrication Drawings
Professional blueprints you can show to your client for approval and to your fitter for welding.
DXF Cutting Files
1:1 Scale files. Just email them to your laser cutting vendor. No CAD conversion needed.
Verified Bill of Materials (BOM)
We tell you exactly which Gearbox, Motor, and Seal to buy. Zero guesswork.
Ribbon_Blender_Pack_v2.zip
- GA_Drawing_Client_Approval.pdf
- Fabrication_Details_Shop_Floor.pdf
- Bill_Of_Material_Costing.xlsx
- Side_Plate_Laser_Cut.dxf
